8xl CCD AIR RIDE MANIFOLD

8xl CCD AIR RIDE MANIFOLD

$374.99 USD
$499.99 USD $374.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

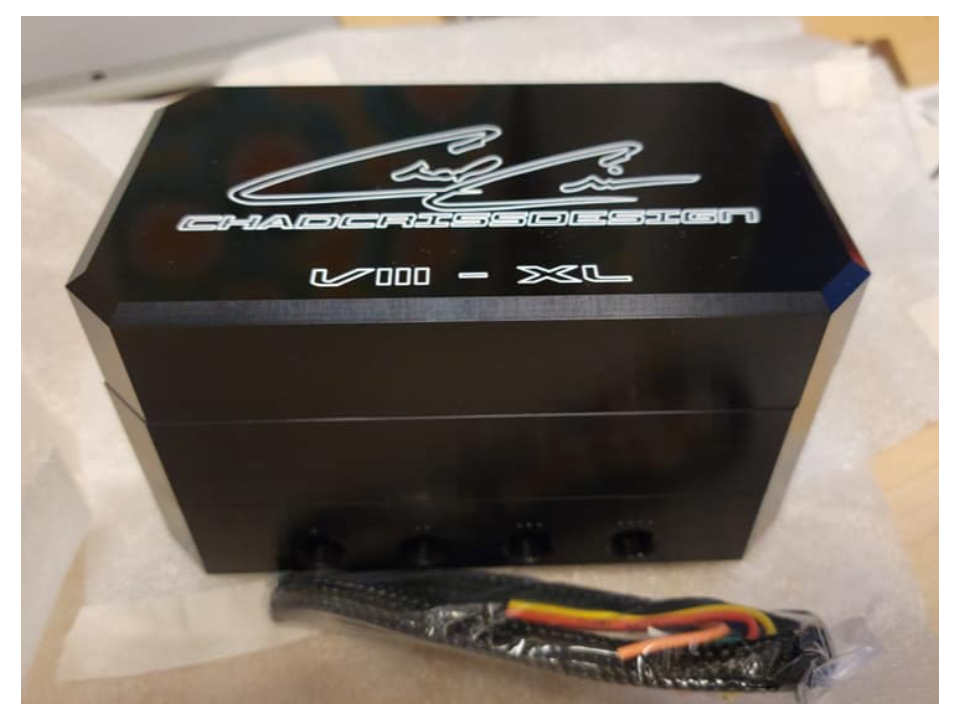

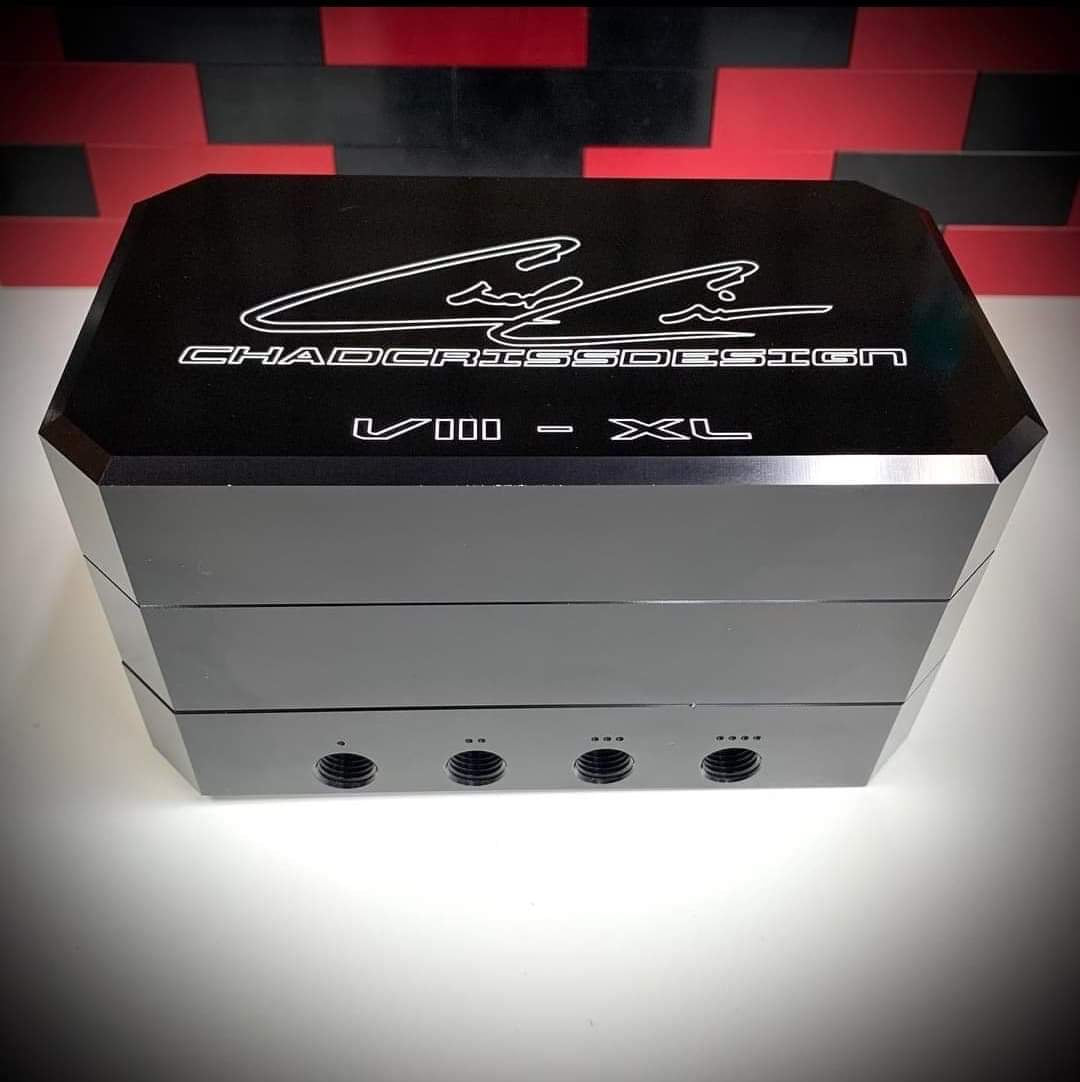

USA-made and Billet Aluminum manifold. The perfect fit air ride manifold for your custom vehicle. Chad Criss 8XL valve block is #1 on the market.  Welcome to an alternative to the traditional 4-way manifold. 100% billet housing and machined ports are inside the valve to support the digital pressure senders. The pressure switch offers the cleanest install on the market!

WARNING!

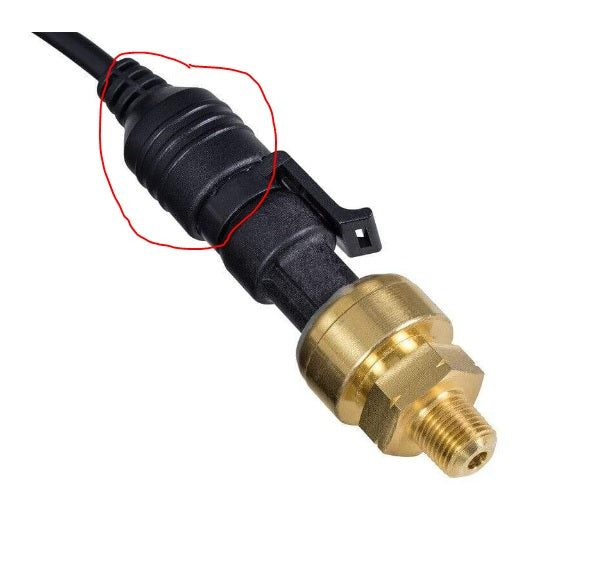

Dakota Digital changed their sending unit cable. You will need to cut the boot off of each cable to get them to fit under the lid!! See attached image!



This Block Features:

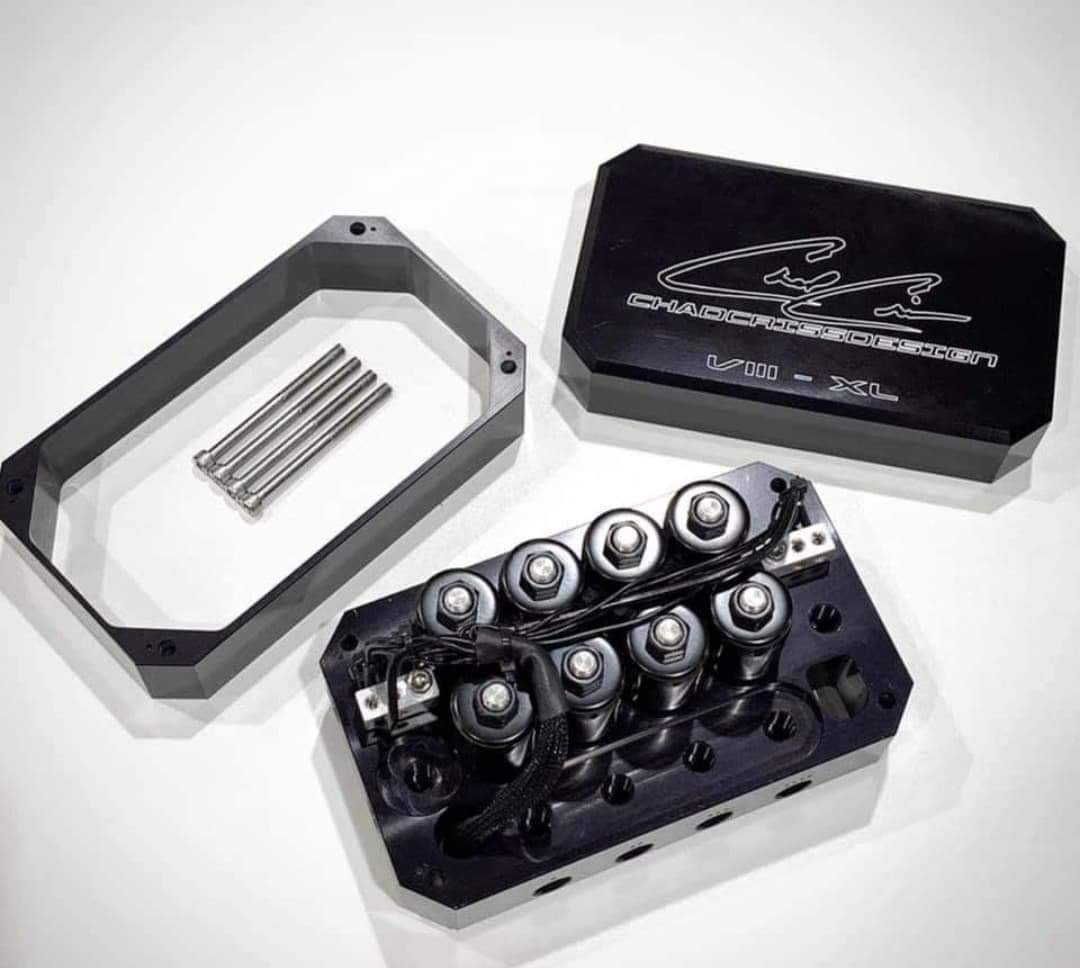

  • 6061 billet aluminum body, belly band, and cap 3pc design (the belly band can be paint matched)

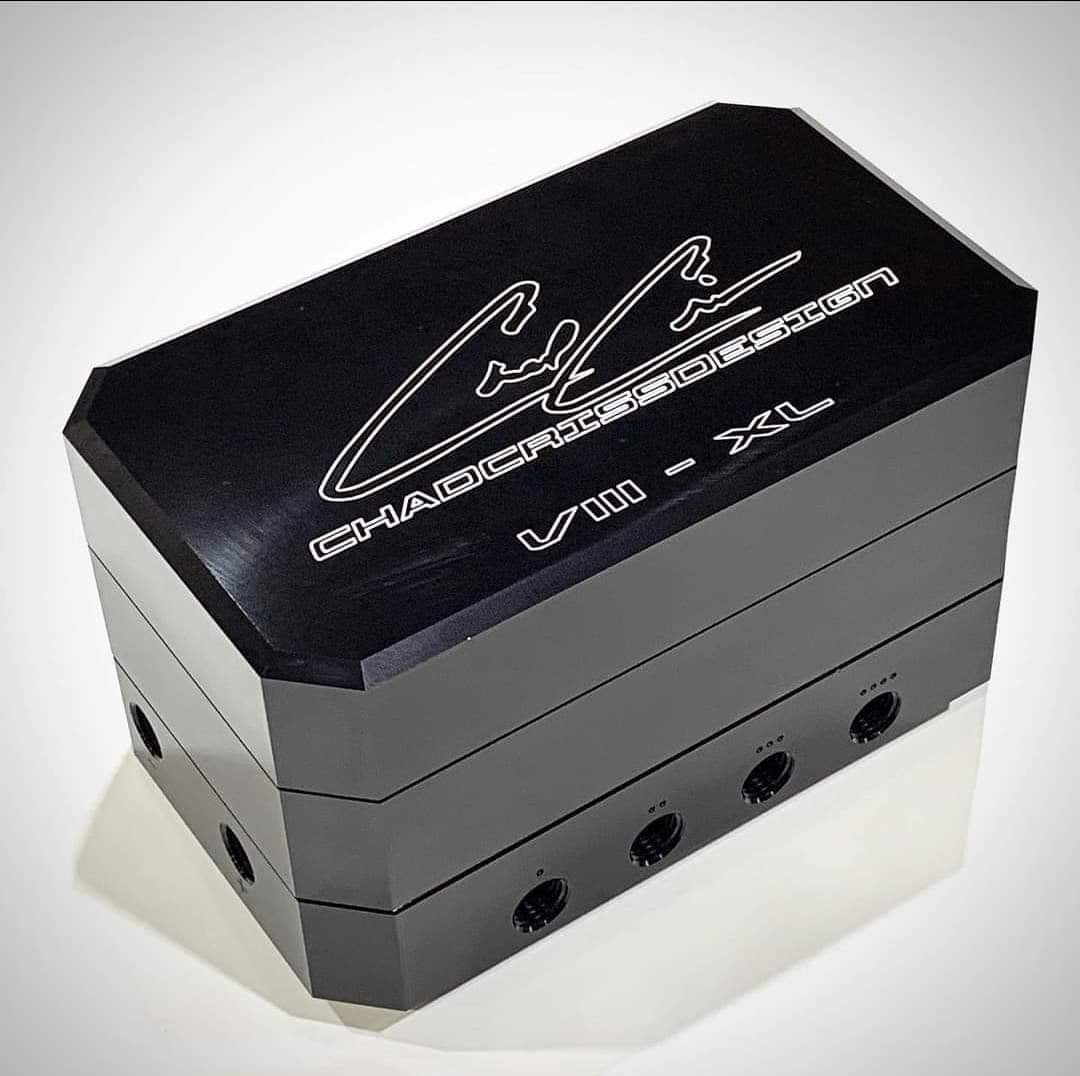

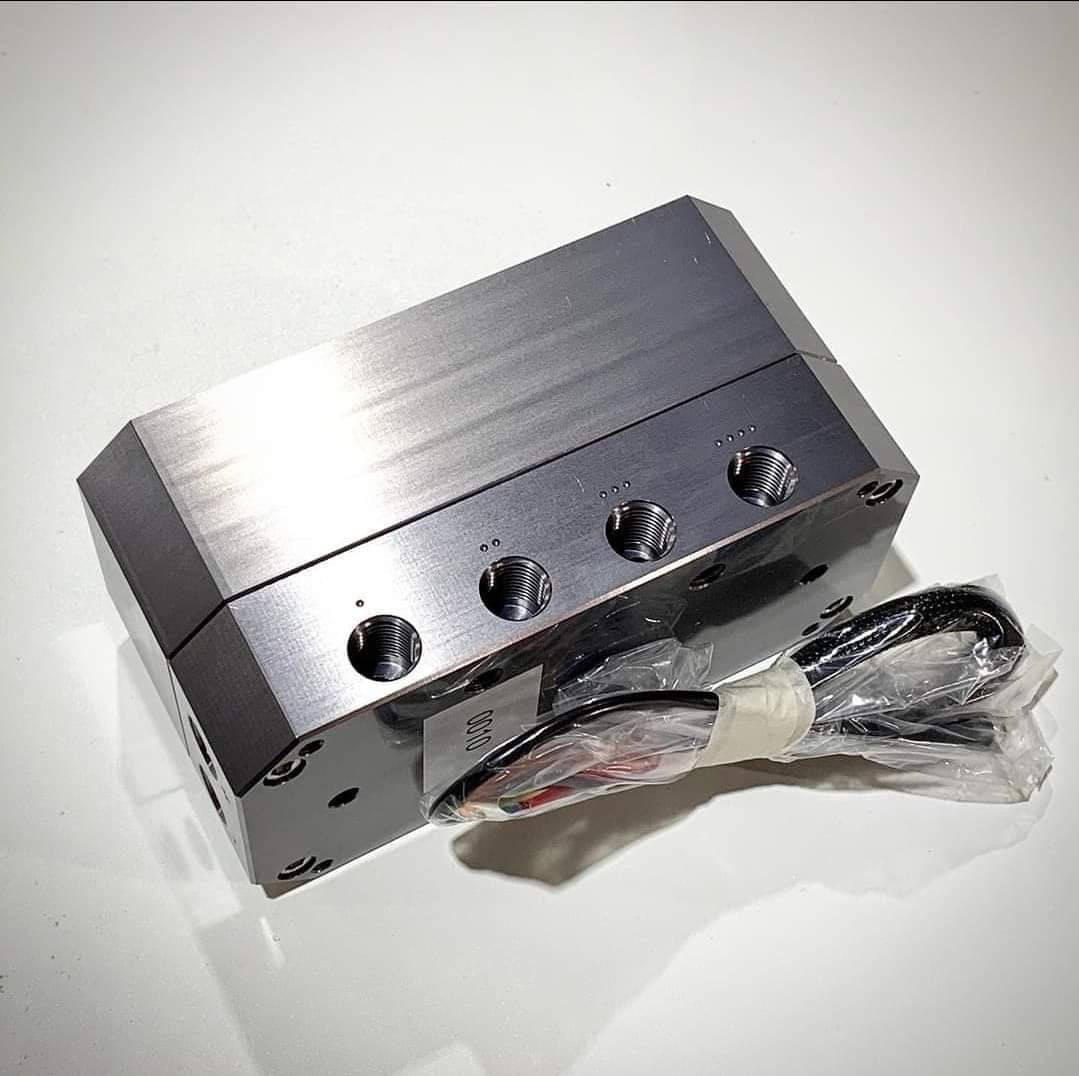

  • (4) 1/4” npt outlet ports
  • Split front/rear “dump” ports
  • (6) 1/8” npt ports so that you can run a pressure sender for each bag, one sensor for tank pressure sender, and one for the tank pressure shut-off switch.

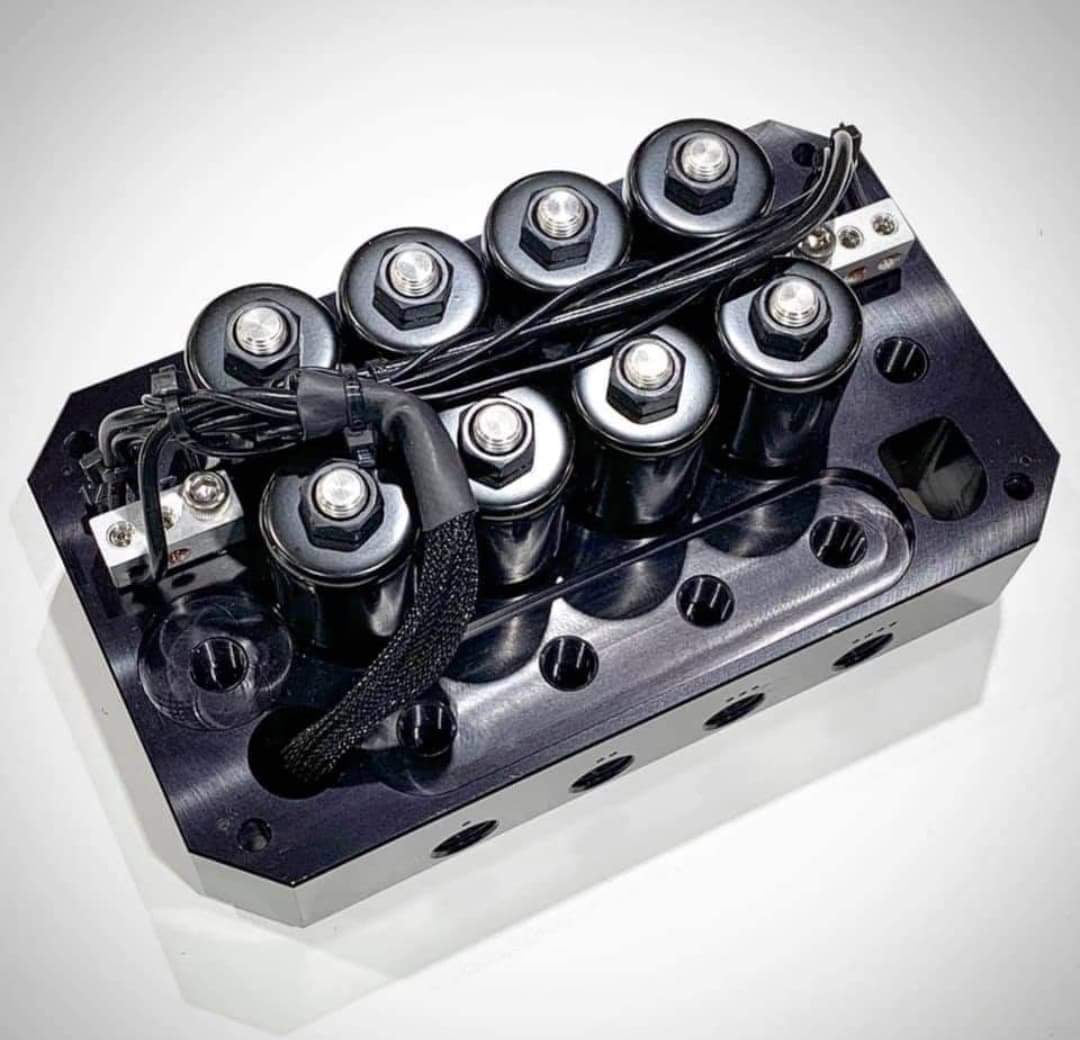

  • All of which are under the billet cover where they are safe from eyeballs and protected from elements All the fasteners and wiring are hidden underneath the cover
  • Rated to 200psi
  • Raw or black anodized finish
  • 100% serviceable and comes with a 1-year warranty *with mailed in warranty card*

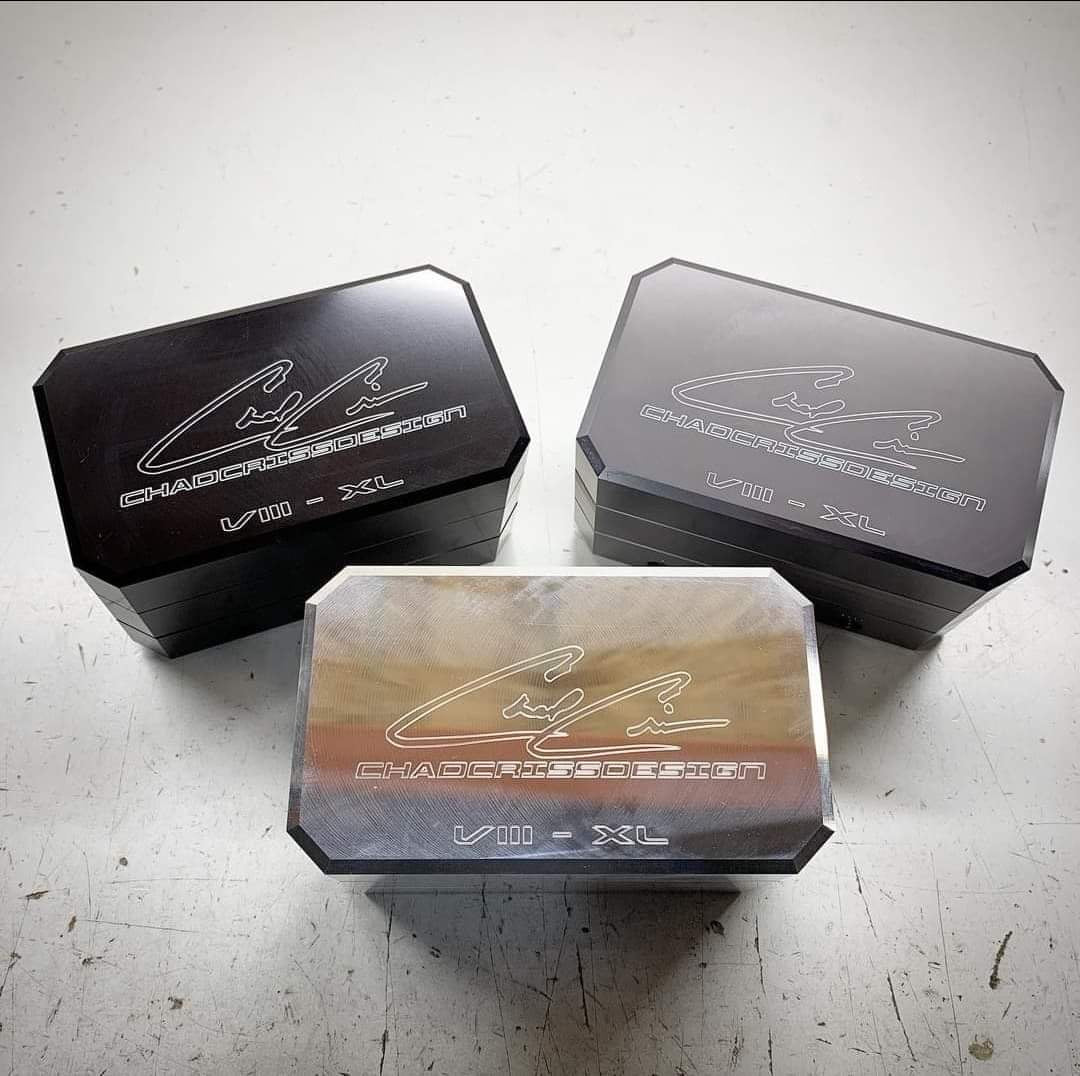

  • Available in Black, Gunmetal Grey, or Raw Aluminum Machined Finish.

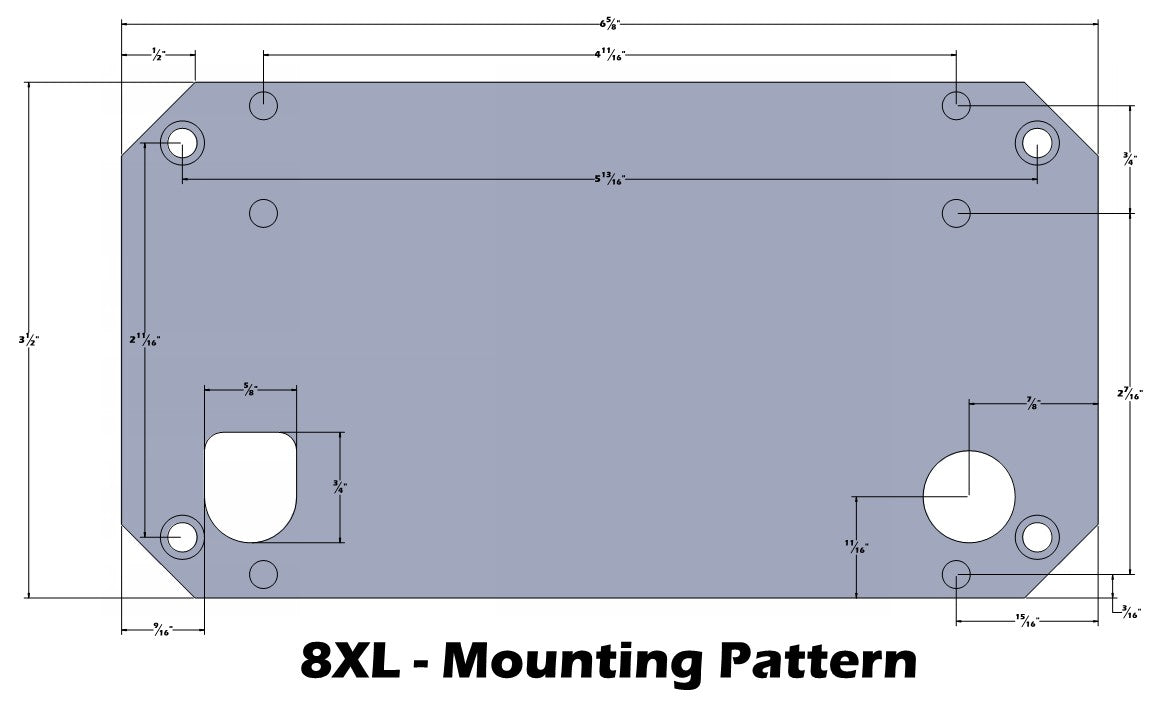

Notes: Valve Measures 7"x 4"x 4"

CCD quality is backed by a 1-year warranty against defects and is field serviceable.
